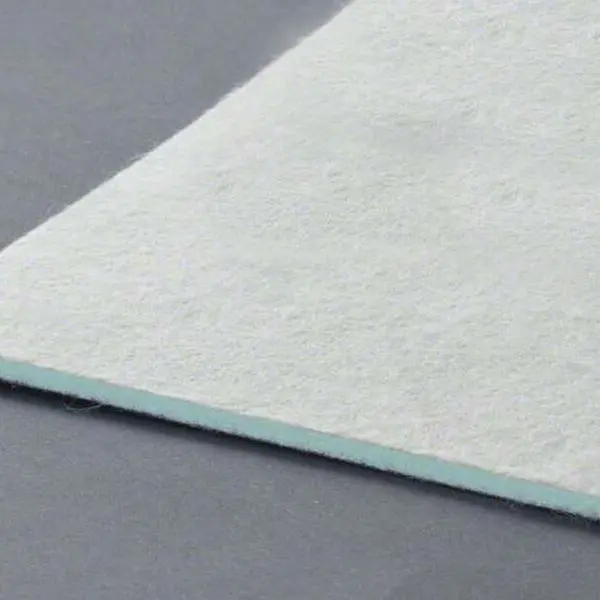

Gym Turf Pad

Add bounce and cushion to your gym turf or field and sports turf with our Gym Turf Pad underlayment. Working out on concrete can be very hard on  joints, and with our Gym Turf Pad, you will not only provide protection for joints, but also protection from injuries. Gym Turf Pads are backed by a 10-year warranty and can be used under any type of turf for added comfort and support.

Material: Made with a high-density frothed urethane foam with a breathable moisture barrier.

Size: 6' x 45' long.

Thickness: Available in .2" ( 5 mm).

Weight: 5 mm thick pads are approx. 160 lbs per roll.

Gym Turf Pad Instructions Jobsite Conditions The room, underlayment, flooring materials and adhesives must be maintained at 65 to 85 degrees F and the relative humidity below 60% for 48 hours prior to, during and after the installation. Subfloor Preparation All subfloor work should be structurally sound, clean and level. The moisture content of the subfloor should not be more than 10 lbs. Per 1000 s/f 24rs as measured via a Calcium Chloride test, before the underlayment is applied. Installation Underlayment can be installed perpendicular to the length of the roll or parallel to the length of the roll being installed and the moisture barrier must be facing up towards the floor. Cut the underlayment to the desired length and position it in the space to be covered. To glue the underlay to your turf, we recommend using a spray adhesive or our 5900 Series adhesive. To adhere the padding to the subfloor, you can use either double-sided tape, a pressure sensitive adhesive, or commercial grade velcro strips. Cut the second sheet of underlay to length and position it with seam butted tightly to the first sheet. Proceed to cover the entire room, making sure the sheets are tightly butted together, without gaps. Note: Gaps in the underlayment may “telegraph” through, so the underlayment should be installed as smoothly and as well seamed as possible.

10 Year Warranty
