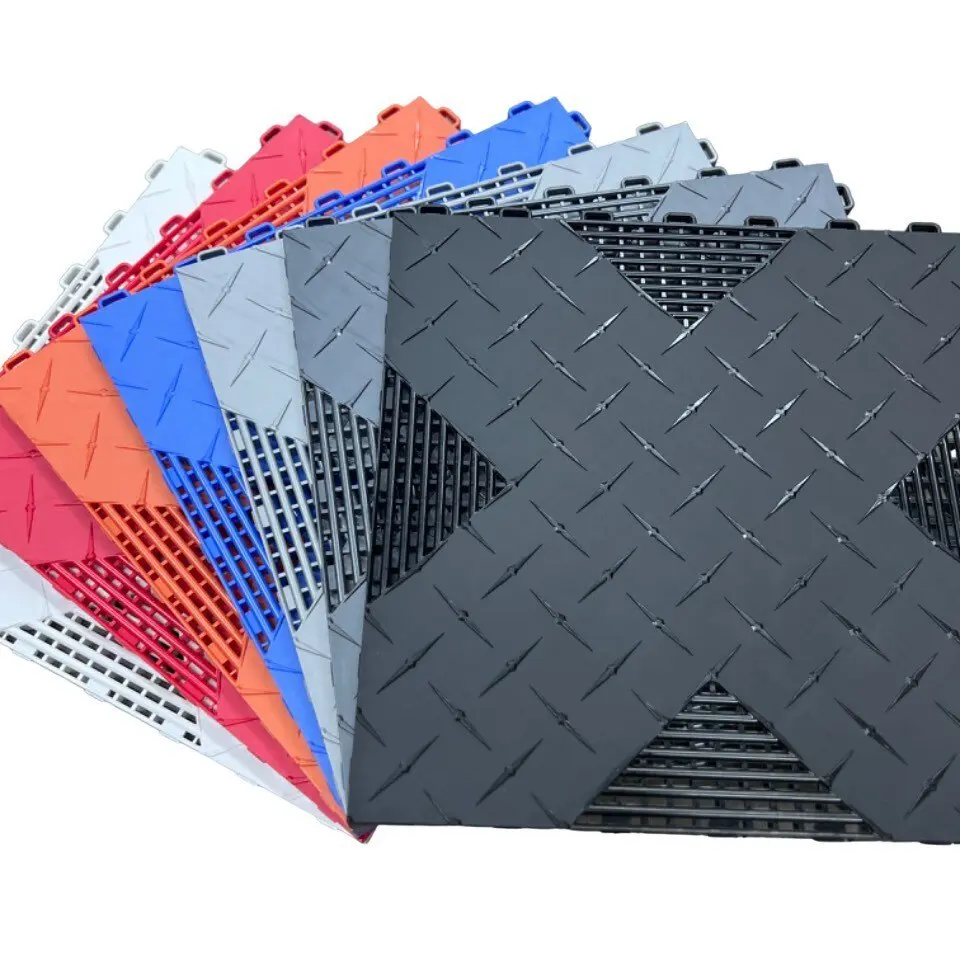

Hybrid-X Vented Diamond Garage Floor Tiles - 17" x 17" (2 sqft/tile)
- Made In USA
- DIY Friendly
- Waterproof
- Interlocking
- Easy to Clean
- Indoor
Financing available — pay over time. Learn more
Free Quick Shipping
Ships between Oct 23 – Oct 27
- Chemical Resistant
- Built-In Drainage
- American-Made in Cleveland, TN.
- Made In USA
- DIY Friendly
- Waterproof
- Interlocking
- Easy to Clean
- Indoor
Counts whole 17" × 17" tiles along each wall. Includes an extra 5% for cuts and pattern matching.
More about this product
Hybrid-X diamond-plate garage tiles lock together in fewer connections than standard-size tiles.
Why garage owners choose Hybrid-X interlocking tiles
Four-Sided Flow-Through
Flow-through channels on all four sides move air across the slab underneath, so trapped moisture has somewhere to go.
24-Point Finger-Lock
Twenty-four locking connections per tile hold the interlock tight under foot and wheel traffic without glue.
Extra-Large 2 Sq Ft Tile
Each 17″ x 17″ panel covers double the area of a standard 1-square-foot tile, so a bay needs fewer seams to lock down.
Made in the USA
Manufactured in Cleveland, Tennessee, in 7 colors so one bay can mix shades or run a single tone.
- Limited warranty
- 10-Year
- Colors available
- 7
- Tile thickness
- 0.65″
- Coverage per tile
- 2 Sq Ft
Best Selling in Garage Tiles
Flex Nitro Garage Floor Tiles XL - 20.5" x 20.5"
Rated 4.8 out of 5 from 216 reviews4.8
Starting From:
$3.25/sqft
$5.00Save 35%Turbo Tile Diamond Garage Floor Tiles - Ultra XL - 17" x 17" (2 sqft/tile)
Rated 5.0 out of 5 from 1 review5.0
Starting From:
$3.03/sqft
$4.66Save 35%
You May Also Like
Swisstrax Ribtrax Pro Smooth Garage Floor Tiles - 15.75" x 15.75"
Rated 5.0 out of 5 from 2 reviews5.0
Starting From:
$4.98/sqft
Jamboree Rubber Playground Tiles™
Rated 4.8 out of 5 from 23 reviews4.8
Starting From:
$6.75/sqft
$10.12Save 33%Diamond Flex Garage Floor Tiles – Interlocking Design (23.35 sqft/Case)
Rated 4.7 out of 5 from 57 reviews4.7
Starting From:
$4.98/sqft
$7.12Save 30%VersaCourt Driveway Basketball Court Tiles - Outdoor Sports Flooring
Starting From:
$5.48/sqft
$7.31Save 25%
You May Also Need
Everything else for a complete install.
Details & Specifications
Introducing the stylish Hybrid-X Diamond Vented Garage Floor Tiles, the revolutionary designer garage flooring that's set to transform your garage into a sleek and functional space. Designed in a distinctive X-shape, this innovative tile installs twice as fast as traditional garage tiles, covering an impressive 2 square feet each. Bigger, thicker, and stronger, the Hybrid-X Diamond Vented Garage Floor Tiles stand out with their modern dagger-like diamond plate pattern and patented flow-through design, combining the best of both worlds for superior concrete ventilation. Say goodbye to the dilemma of choosing between style and functionality—the Hybrid-X tiles offer both, making these high-performing garage tiles the ultimate choice for a stylish, durable, and efficient garage flooring solution. Upgrade your garage today and experience the perfect blend of innovation, style, and performance with Hybrid-X Diamond Vented Garage Floor Tiles. Backed by a 10-year limited warranty.
Material: Polypropylene
Size: 17" x 17"
Thickness: .65" or 16.5mm
Weight: Approx 1.7 lbs. per tile.
Recommended Uses: Ideal choice for garage flooring, workshop flooring, basement flooring, utlity room flooring, laundry room flooring.
Dimensions
- Exact Weight (lbs)
- 1.7
- Size
- 17" X 17" x 16.5mm - 2 sqft/tile
Details
- Nominal Sq. Ft.
- 2
- Installation
- Interlocking, Temporary or Semi-Permanent
- Coverage
- 2
- Car Jack Approved
- No
- Chemical-Resistant
- Yes
- Colorfast
- No
- Gloss
- Semi-Gloss
- Interlock Style
- Hidden/Snap Together
- Material
- Polypropylene
- Slip Resistant
- Yes
- California Residents
- Prop 65 Warning(s)
Features
- Chemical Resistant
- Built-In Drainage
- American-Made in Cleveland, TN.
- Extra large size (2 square feet per tile) allows for turbo installation twice as fast.
- Flow through areas on all 4 sides allow air flow circulation on concrete.
- Finger lock. Easy extra large interlocking system with 24 giant locking connections.
- Cool Dagger diamond plate design.
Shipping & Returns
Ships between Oct 23 – Oct 27
Installation
Installation Instructions for Hybrid-X Garage Flooring Tile:
Step 1: Prepare the Subfloor
- Ensure your subfloor is clean, dry, and free from dirt, dust, grease, or any other debris before starting installation.
Step 2: Start Installation
- Begin in the front left corner of the garage.
- Make sure the female side (loops) of the tile is facing away from the wall.
- Snap the tiles together by pressing down until the hidden interlock system clicks into place.
- Continue laying tiles along the left wall and then the adjacent wall, filling the rest of the area with whole tiles.
Step 3: Cutting Tiles
- When you reach a wall or an obstacle, measure the area and cut the tiles to fit using a tile cutter or a power saw with a fine-toothed blade.
- Leave about a 3/4" space between the tiles and the wall or obstruction to allow for expansion.
Step 4: Finishing Touches
- Once all tiles are in place, snap in the edge pieces if needed.
- Ensure all tiles are securely locked together for a smooth, finished look.
Care & Maintenance
Care and Maintenance for Hybrid-X Garage Flooring Tile:
Regular Cleaning:
- Vacuum or sweep any loose crumbs, dust, or debris from the surface of the tiles.
- For tougher dirt or stains, hose off the tiles or damp mop them using a mild soap and water mixture.
Spill Management:
- Gasoline won’t penetrate plastic tiles, but if fuel pools on or under the tiles, they may warp. Clean up fuel spills quickly to prevent warping.
Handling Car Jacks:
- These tiles are not car jack approved. Use your jack directly on the concrete or place a plywood board or steel plate under the jack to avoid damaging the tiles.
Managing Stains:
- While Hybrid-X tiles are chemical resistant, colors can vary between batches, particularly for graphite and gunmetal. Order extra tiles to maintain color continuity for repairs or replacements.
Tile Replacement:
- If any tile becomes damaged, snap out the affected tile and replace it with a new one.
