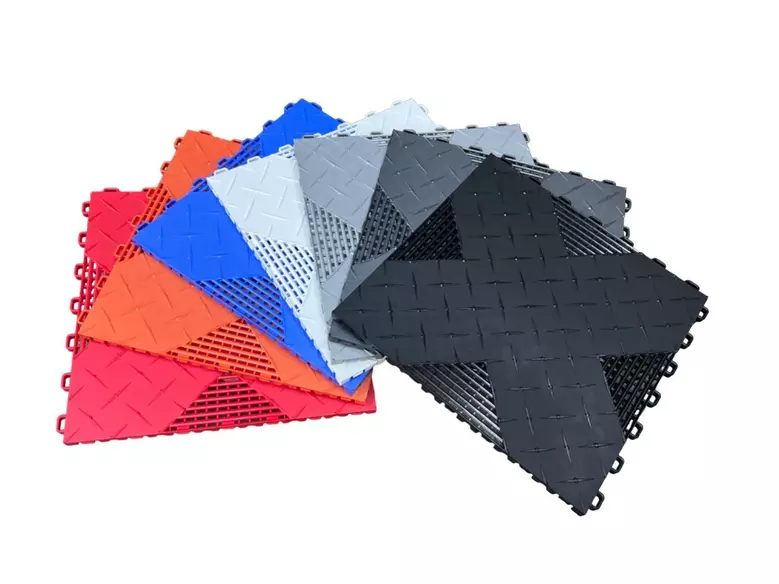

Hybrid-X Vented Diamond Garage Tiles - 2 sqft/tile

Introducing the stylish Hybrid-X Diamond Vented Garage Floor Tiles, the revolutionary designer garage flooring that's set to transform your garage into a sleek and functional space. Designed in a distinctive X-shape, this innovative tile installs twice as fast as traditional garage tiles, covering an impressive 2 square feet each. Bigger, thicker, and stronger, the Hybrid-X Diamond Vented Garage Floor Tiles stand out with their modern dagger-like diamond plate pattern and patented flow-through design, combining the best of both worlds for superior concrete ventilation. Say goodbye to the dilemma of choosing between style and functionality—the Hybrid-X tiles offer both, making these high-performing garage tiles the ultimate choice for a stylish, durable, and efficient garage flooring solution. Upgrade your garage today and experience the perfect blend of innovation, style, and performance with Hybrid-X Diamond Vented Garage Floor Tiles. Backed by a 10-year limited warranty.

Material: Polypropylene

Size: 17" x 17"

Thickness: .65" or 16.5mm

Weight: Approx 1.7 lbs. per tile.

Recommended Uses: Ideal choice for garage flooring, workshop flooring, basement flooring, utlity room flooring, laundry room flooring.

Installation Instructions for Hybrid-X Garage Flooring Tile:

Step 1: Prepare the Subfloor

• Ensure your subfloor is clean, dry, and free from dirt, dust, grease, or any other debris before starting installation.



Step 2: Start Installation

• Begin in the front left corner of the garage.
• Make sure the female side (loops) of the tile is facing away from the wall.
• Snap the tiles together by pressing down until the hidden interlock system clicks into place.
• Continue laying tiles along the left wall and then the adjacent wall, filling the rest of the area with whole tiles.



Step 3: Cutting Tiles

• When you reach a wall or an obstacle, measure the area and cut the tiles to fit using a tile cutter or a power saw with a fine-toothed blade.
• Leave about a 3/4" space between the tiles and the wall or obstruction to allow for expansion.



Step 4: Finishing Touches

• Once all tiles are in place, snap in the edge pieces if needed.
• Ensure all tiles are securely locked together for a smooth, finished look.

Care and Maintenance for Hybrid-X Garage Flooring Tile:

Regular Cleaning:

• Vacuum or sweep any loose crumbs, dust, or debris from the surface of the tiles.
• For tougher dirt or stains, hose off the tiles or damp mop them using a mild soap and water mixture.



Spill Management:

• Gasoline won’t penetrate plastic tiles, but if fuel pools on or under the tiles, they may warp. Clean up fuel spills quickly to prevent warping.



Handling Car Jacks:

• These tiles are not car jack approved. Use your jack directly on the concrete or place a plywood board or steel plate under the jack to avoid damaging the tiles.



Managing Stains:

• While Hybrid-X tiles are chemical resistant, colors can vary between batches, particularly for graphite and gunmetal. Order extra tiles to maintain color continuity for repairs or replacements.



Tile Replacement:

• If any tile becomes damaged, snap out the affected tile and replace it with a new one.
